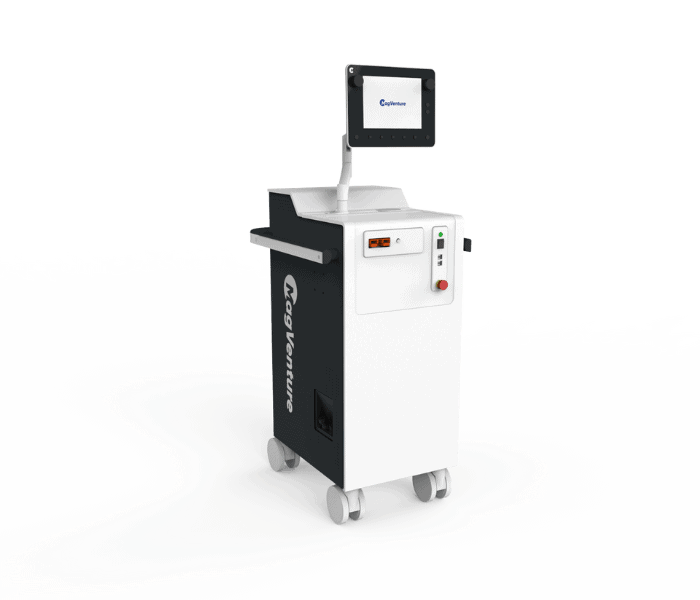

Product details
Max repetition rate
250 pps
Pulse mode
Standard
Waveform
Biphasic,
Biphasic Burst (Theta Burst)
Current direction
Normal
Ramp up
No
Product no.
9016A0501 300 us, 100 V
9016D0031 300 us, 120 V
9016A0521 300 us, 230 V
9016A0701 200 us, 100 V
9016D003 200 us, 120 V
9016A0721 200 us, 230 V
Specifications
Mechanical Data
HxWxD Width: 43.5 cm
Depth: 57.5-63 cm
Height to top base: 108 cm
Height with display: 128.5-151.5cm
Weight
100V/120V: 207kg/456lbs
230V:175kg/386lbs
Coil compatibility
Most coils. Ask MagVenture or your local representative for more information
Environmental Data
Operating temperature 10-30°C/50-86°F
Storage temperature 5-50°C/41-122°F
Operating humidity 30-60% RH
Storage humidity 20-80% RH
Power Supply
Mains voltage 100V 3N~, 50/60Hz
120V 3N~,50/60Hz
230V 3N~,50/60Hz
Maximum power consumption
10kVA, operation from 100V~,120V~ or 230V~
Ordering Number
100V: 9016A0501, 120V:9016A0511, 230V: 9016A0521
