Intended use
Diagnostic Use

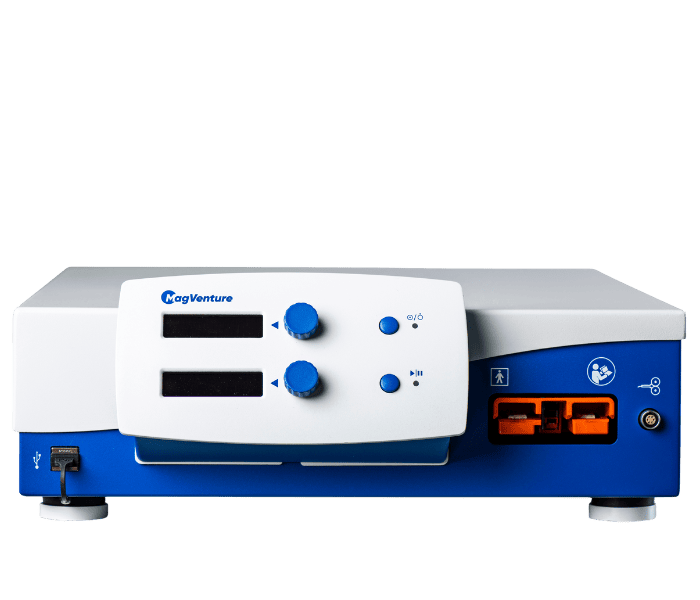

The MagPro R20+ Express solution is intended as an electro-physiological aid to assess diagnosis and to monitor diseases of the central and peripheral nervous system, based on the use of Motor Evoked Potentials (MEP).
Therapeutic Use
Treatment of Major Depressive Disorder in adult patients who have failed to achieve satisfactory improvement from two prior antidepressant medications, at or above the minimal effective dose and duration in the current episode.S®.
Product details
Max repetition rate
100 pps
Pulse mode
Standard
Waveform
Biphasic
Biphasic Burst
(Theta Burst)
Current direction
Normal
Ramp up
No
Part no.
9016E0911
Specifications
Mechanical Data
HxWxD 150 x 390 x 440mm/5,9 x 15,3 x 17,3 in
Weight 17 kg/ 37.5 lbs
Coil compatibility
These coils can be used to operate the MagPro R20+: C-100, C-B60, C-B70, MC-B70, MC-125, MMC-90, MMC-140, MMC-140-II, RT-120, RT-120-II, D-B80, MC-B65-HO, MCF-B65, MCF-B70, MCF-75, MCF-125, MCF-P-B65, MC-P-B70, MCF-P-B70
Environmental Data
Operating temperature 10-30°C/50-86°F
Storage temperature 5-50°C/41-122°F
Operating humidity 30-60% RH
Storage humidity 20-80% RH
Power Supply
Mains voltage 120V~/230V~,50/60 Hz according to IEC 60601-1
Maximum power consumption 900 VA
