Intended use

Diagnostic Use

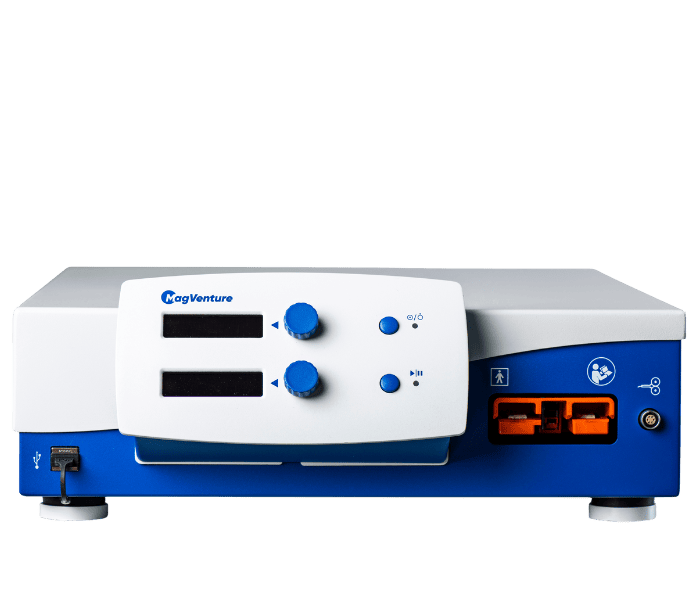

The MagPro R20+ Express solution is intended as an electro-physiological aid to assess diagnosis and to monitor diseases of the central and peripheral nervous system, based on the use of Motor Evoked Potentials (MEP).

Therapeutic Use
Treatment of Major Depressive Disorder in adult patients who have failed to achieve satisfactory improvement from two prior antidepressant medications, at or above the minimal effective dose and duration in the current episode.S®.

Specifications

Mechanical Data

HxWxD 150 x 390 x 440mm/5,9 x 15,3 x 17,3 in

Weight 17 kg/ 37.5 lbs

Coil compatibility

These coils can be used to operate the MagPro R20+: C-100, C-B60, C-B70, MC-B70, MC-125, MMC-90, MMC-140, MMC-140-II, RT-120, RT-120-II, D-B80, MC-B65-HO, MCF-B65, MCF-B70, MCF-75, MCF-125, MCF-P-B65, MC-P-B70, MCF-P-B70

Environmental Data

Operating temperature 10-30°C/50-86°F
Storage temperature 5-50°C/41-122°F
Operating humidity 30-60% RH
Storage humidity 20-80% RH

Power Supply

Mains voltage 120V~/230V~,50/60 Hz according to IEC 60601-1
Maximum power consumption 900 VA

Related packages

R20 therapy package

R20 therapy package

Compact therapy system suitable for standard rTMS approved protocols

  • Friendly interface
  • Multiple sessions per day
  • Compact installation
  • Up to 100Hz/pps
  • External trigger for MEP
  • Biphasic waveform
R30 standard level therapy package

R30 standard level therapy package

Standard therapy system suitable for most rTMS protocols

  • High performance
  • Versatile interface
  • Up to 80Hz/pps
  • Biphasic waveform
R30 with Flow Arm package

R30 with Flow Arm package

Standard therapy system suitable for most rTMS protocols incl. Flow Arm

  • High performance
  • Liquid cooling
  • Versatile interface
  • Up to 80Hz/pps
  • Biphasic waveform
